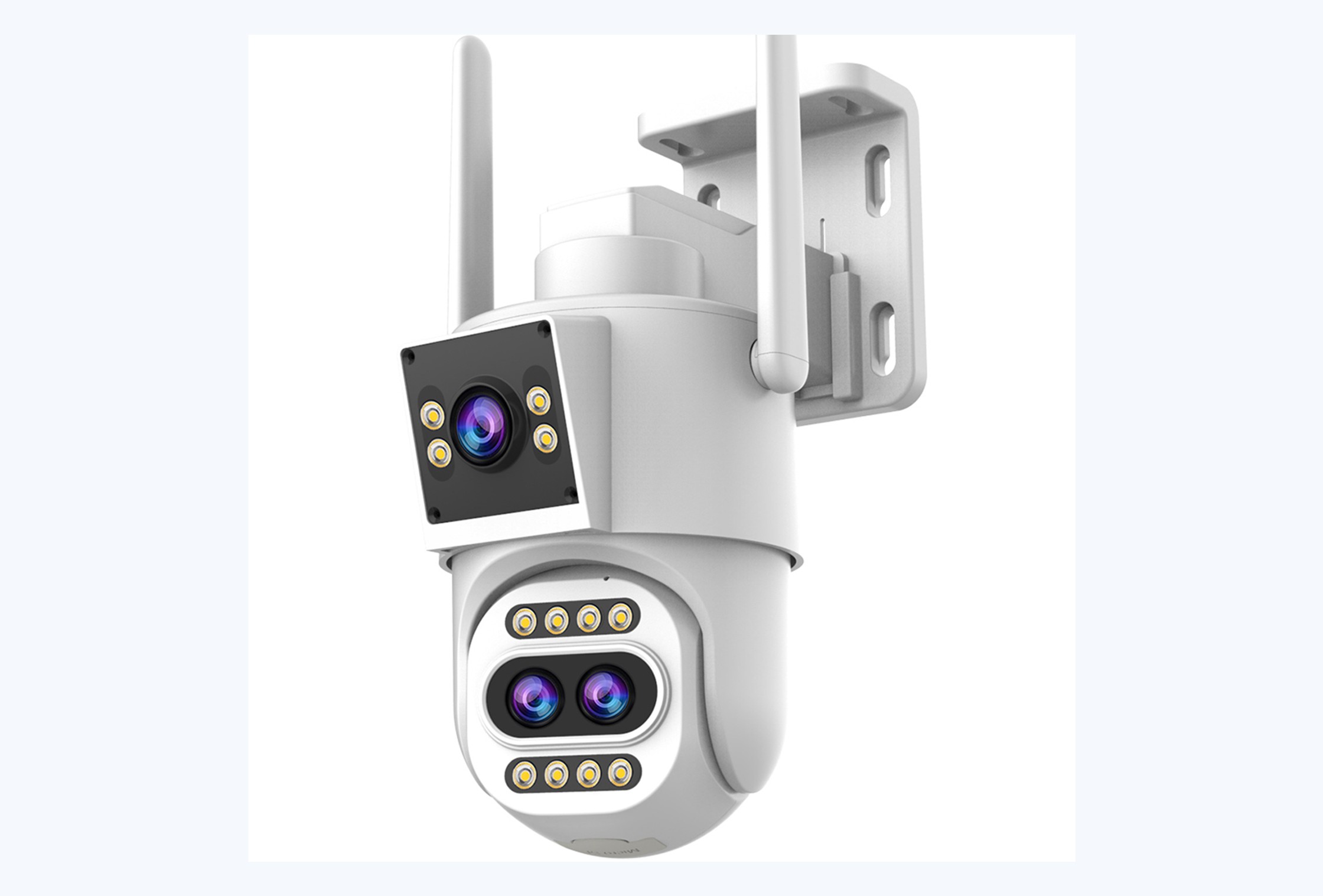

Outdoor Dual Camera Zoom Dome|W10Z-U
Outdoor Dual Camera Zoom Dome
W10Z-U

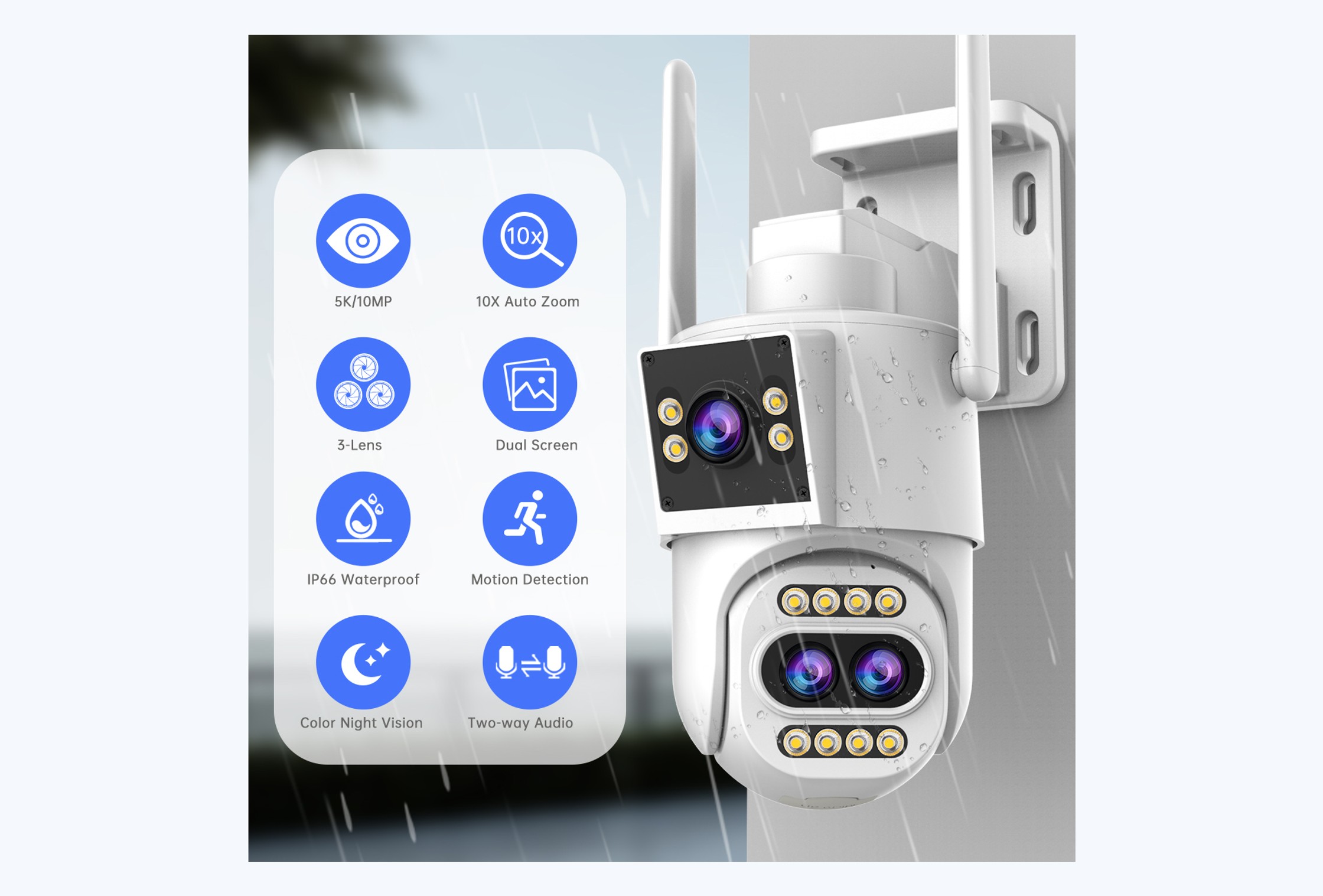

• Clear 3MP Video: See sharp details with high-quality 2K video.
• 10X Optical Zoom: Zoom in to see important details more clearly.
• Pan & Tilt View: 330° pan and 90° tilt help cover more areas.
• Smart Motion Tracking: The camera can follow movement automatically.
• Color Night Vision: Built-in lights help show clear full-color footage at night.
MODEL
Model: W10Z-U
App: Cam720
Camera Size: 230 × 170 × 110 mm
Weight: 623 g
Material: ABS + PC
CAMERA
Processor: Ingenic T23N
Image Sensor: SC2337P
Sensor Size: 1/3"
Resolution: 3MP
Lens: 12mm + 4mm
FOV: 93°
Optical Zoom: 10×
VIDEO & AUDIO
Video Resolution: 2304 × 1296
Sub Stream: 640 × 360
Video Compression: H.264
Two-Way Audio: Supports
Built-in Microphone: Supports
Built-in Speaker: Supports
Sound Detection: Supports
NIGHT VISION
Night Vision: IR Night Vision & Color Night Vision
Night Vision Distance: 0–20 m
White Light: Supports
DETECTION & NOTIFICATIONS
Motion Detection: Supports
Auto Tracking: Supports
Human Detection: Not Supported
Custom Alarm Sound: Supports
App Push Notification: Supports
PTZ
PTZ: Supports
Pan Angle: 330°
Tilt Angle: 90°
STORAGE
Local Storage: Supports TF Card
TF Card Capacity: 8GB–256GB
Cloud Storage: Supports
NETWORK
Wireless Connection: 2.4GHz Wi-Fi
Bluetooth Pairing: Supports
Ethernet Port: Supports
Wireless Standard: IEEE 802.11 a/b/g/n
ONVIF: Supports
Alexa: Supports
POWER
Power Input: 5V / 1.5A
Power Port: USB Type-C
APP & SYSTEM
App Supports: Cam720
Phone System: iOS / Android
Language: Multi-language Supported
PACKAGE CONTENTS
Camera
Power Adapter
Power Cable
User Manual
Bracket
Screw Pack
Waterproof Kit
Warning Sticker
GENERAL
Waterproof: Supports
Operating Temperature: -20°C to 55°C
Operating Humidity: 10%–90%
