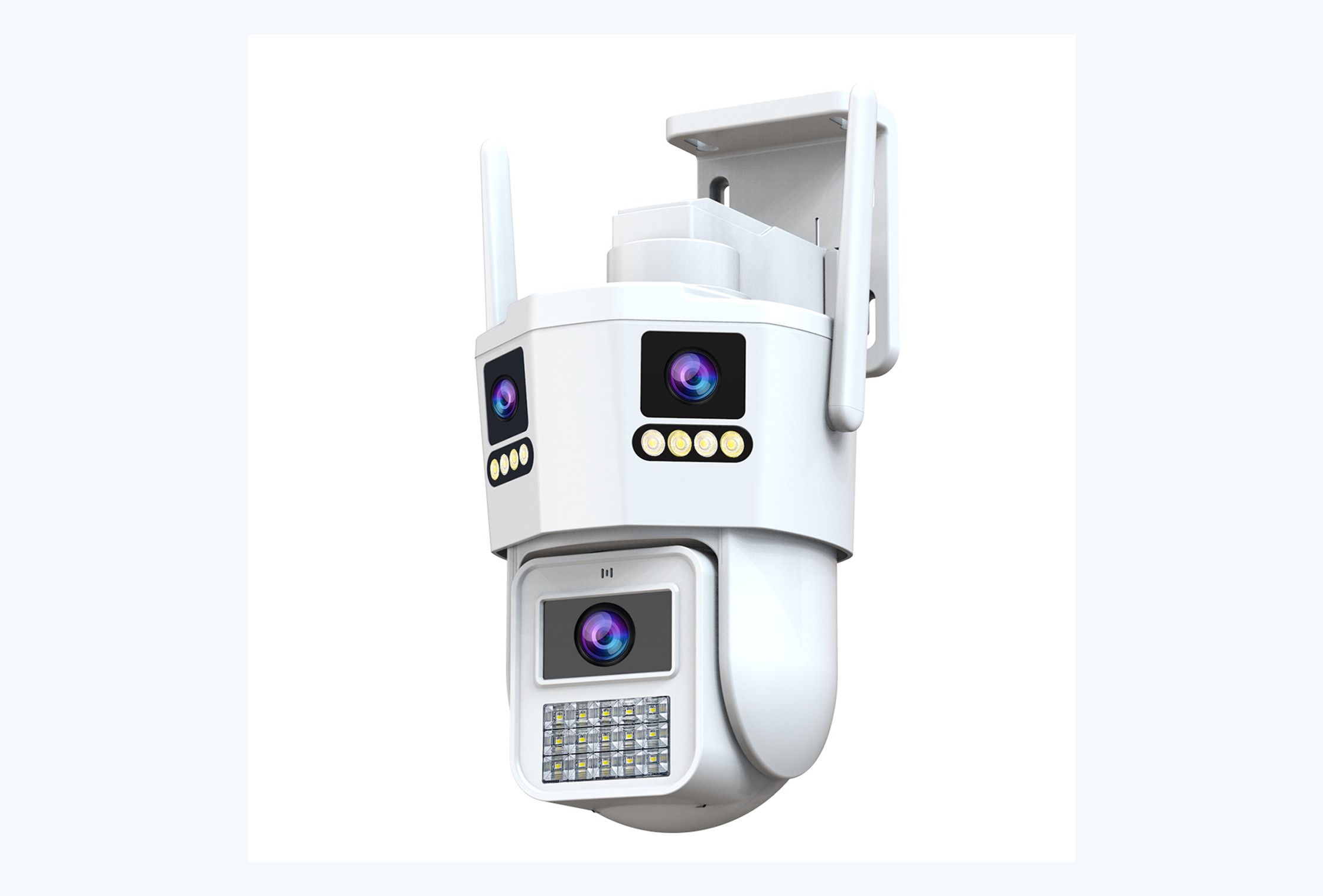

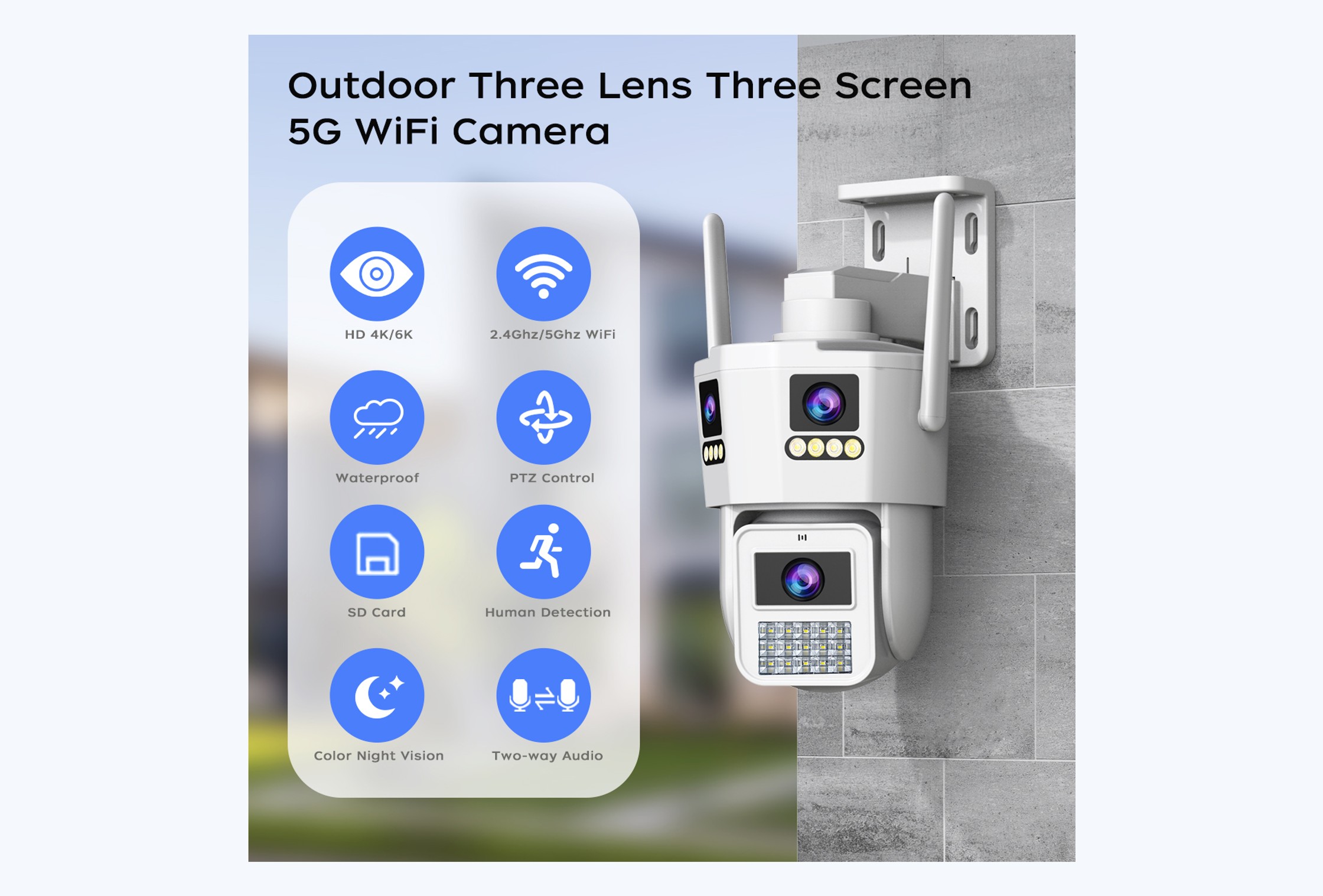

Outdoor Triple Camera Dome|W14-U
Outdoor Triple Camera Dome
W14-U
• Clear 1080P Video: See clear details with smooth HD footage.

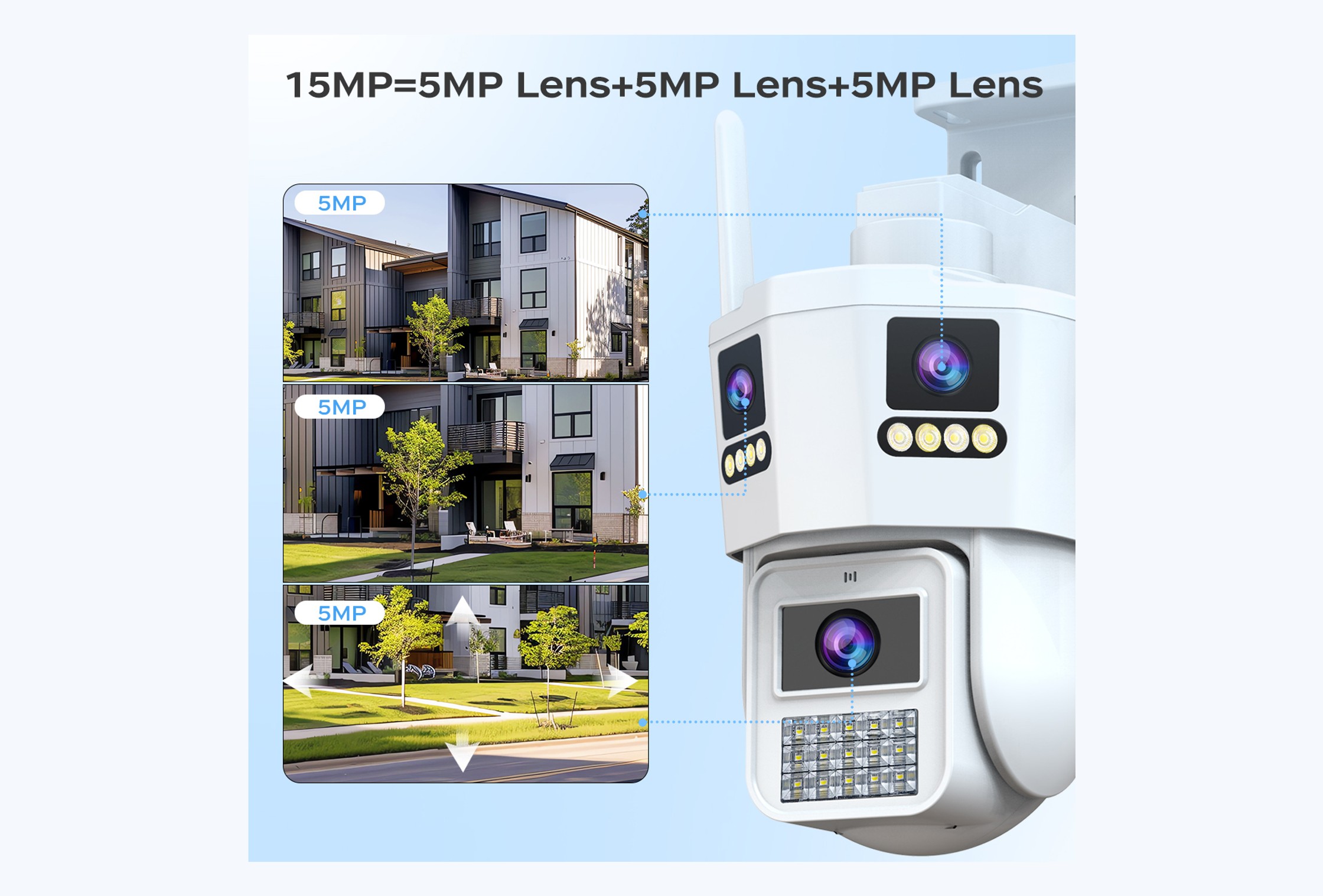

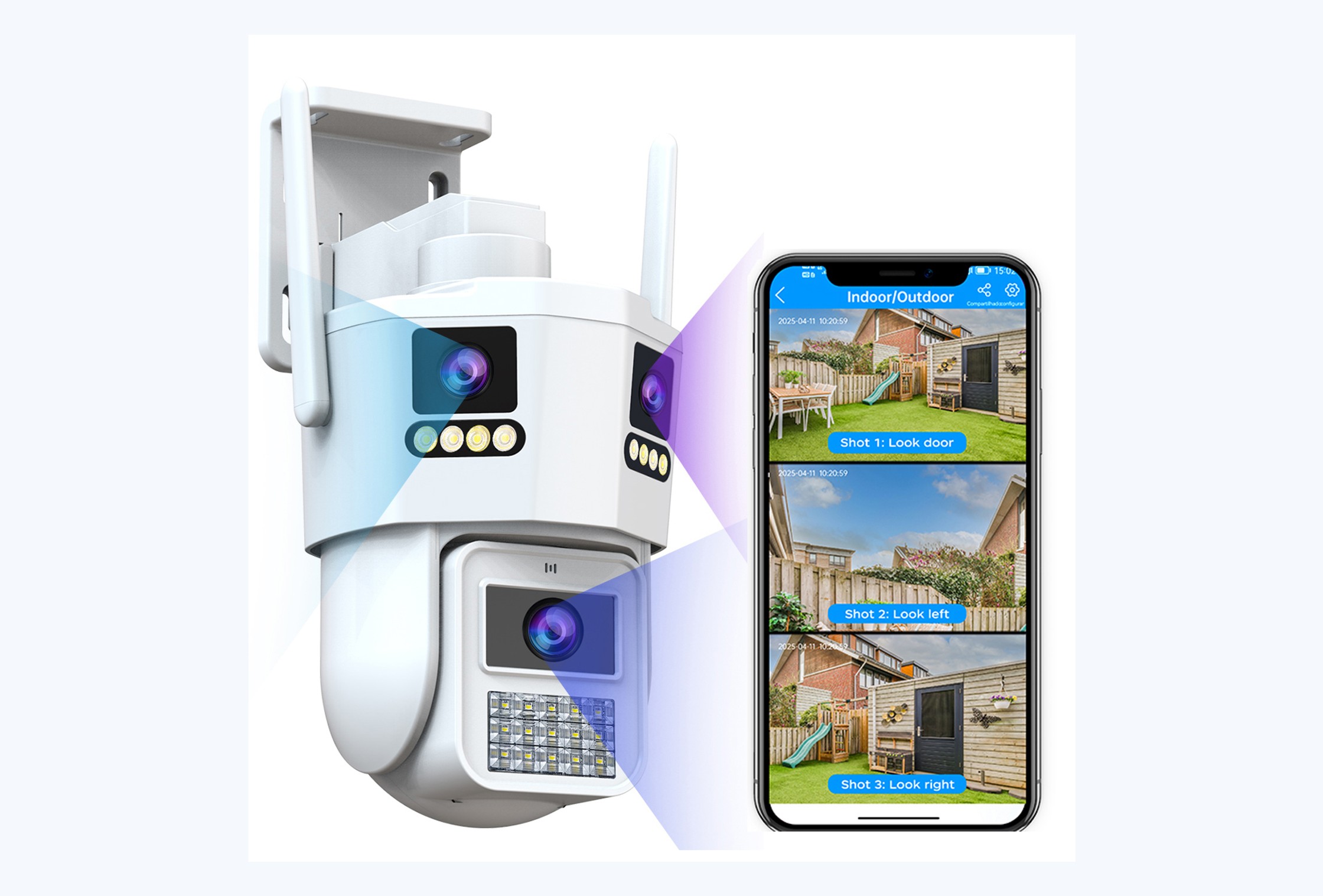

• Triple-Lens View: Three cameras help cover more areas at the same time.
• Pan & Tilt Control: 355° pan and 90° tilt give a wider viewing angle.
• Smart Motion Alerts: Get app notifications when movement is detected.
• Color Night Vision: Built-in lights help show clear full-color footage at night.
MODEL
Model: W14-U
App: Cam720
Material: ABS + PC
CAMERA
Processor: Ingenic T23N
Image Sensor: SC3373 / SC2337P
Sensor Size: 1/3"
Resolution: 2MP + 3MP
Lens: 2.8mm + 6mm
Digital Zoom: 5×
VIDEO & AUDIO
Video Resolution: 1920 × 1080 / 2960 × 1665
Sub Stream: 640 × 360
Video Compression: H.265
Two-Way Audio: Supports
Built-in Microphone: Supports
Built-in Speaker: Supports
Sound Detection: Supports
NIGHT VISION
Night Vision: IR Night Vision & Color Night Vision
Night Vision Distance: 0–20 m
White Light: Supports
DETECTION & NOTIFICATIONS
Motion Detection: Supports
Human Detection: Supports
Auto Tracking: Supports
Custom Alarm Sound: Supports
App Push Notification: Supports
PTZ
PTZ: Supports
Pan Angle: 355°
Tilt Angle: 90°
STORAGE
Local Storage: Supports TF Card
TF Card Capacity: 8GB–256GB
Cloud Storage: Supports
NETWORK

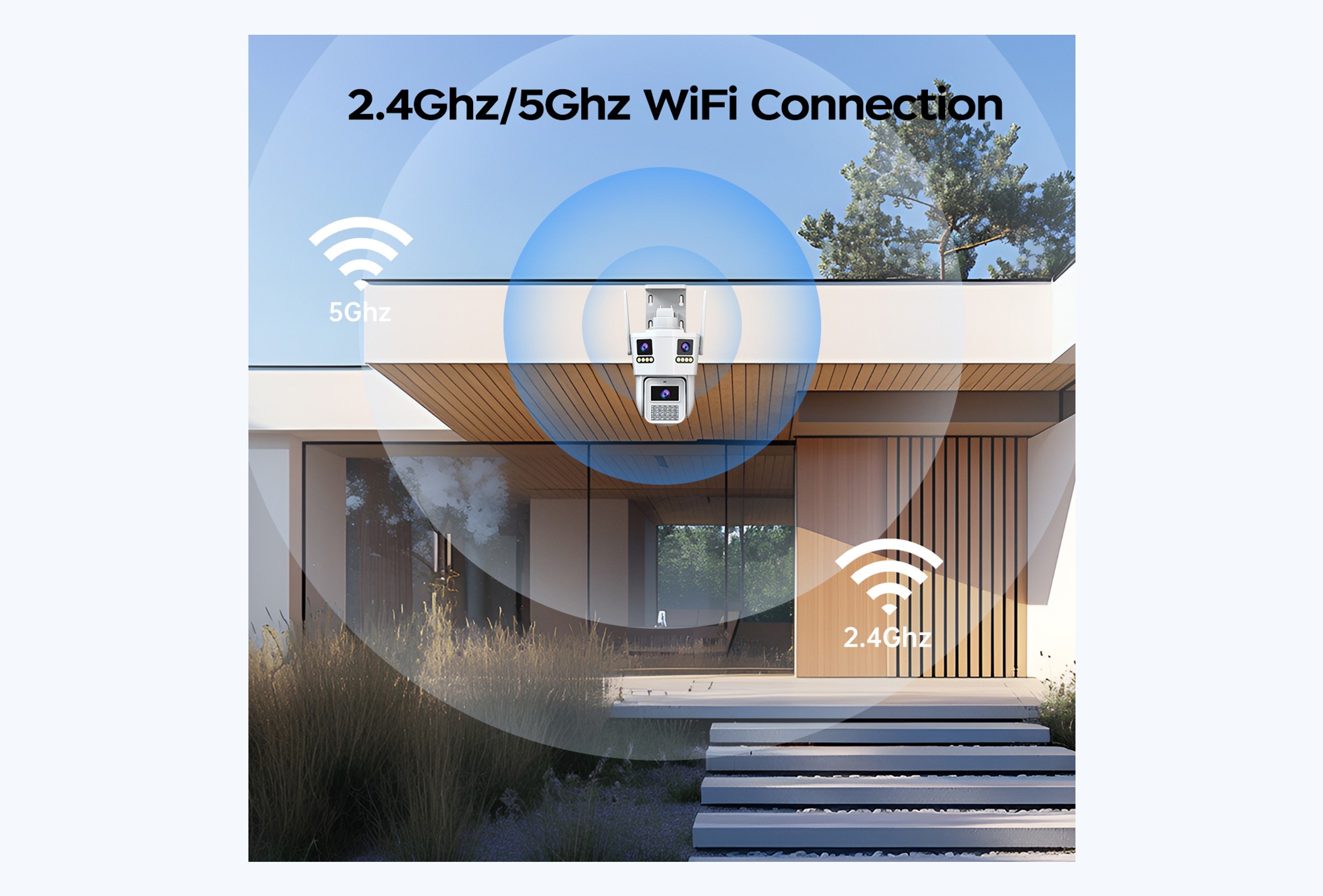

Wireless Connection: 2.4GHz / 5GHz Wi-Fi
Bluetooth Pairing: Supports
Wireless Standard: IEEE 802.11 a/b/g/n
ONVIF: Supports
Alexa: Supports
POWER
Power Input: 5V
Power Port: USB Type-C
APP & SYSTEM
App Supports: Cam720
Phone System: iOS / Android
Language: Multi-language Supported
PACKAGE CONTENTS
Camera
Power Cable
User Manual
Screw Pack
Waterproof Kit
GENERAL
Waterproof: Supports
Operating Temperature: -10°C to 55°C
Operating Humidity: 10%–90%
